FN-TG01 is a high quality MP3 player sound board that is able to drive a warning light or LED light at the same time when an audio file is playing. It can be activated with an infrared motion sensor, relay, or button.

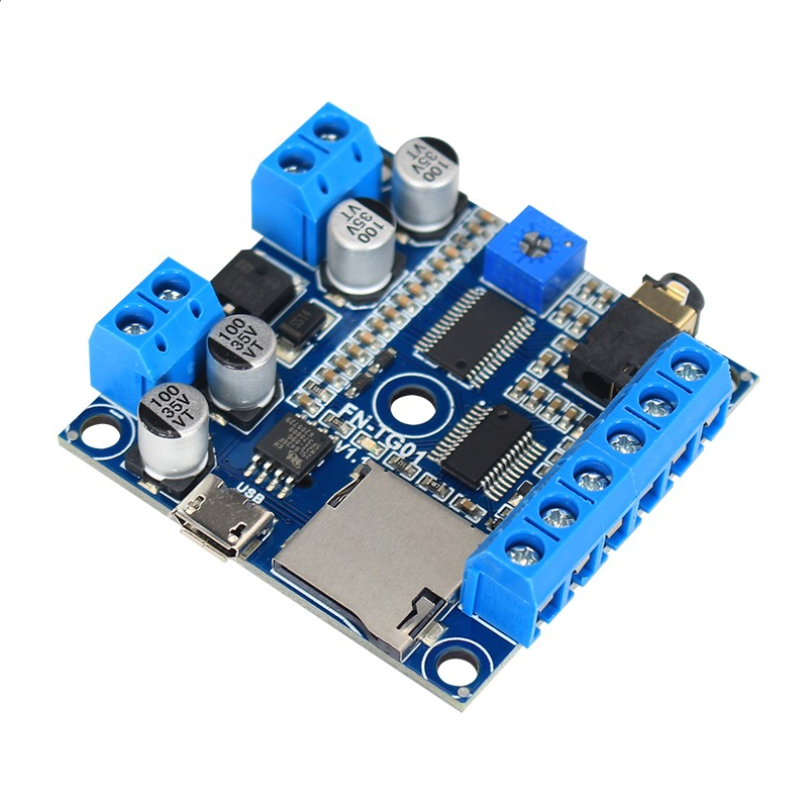

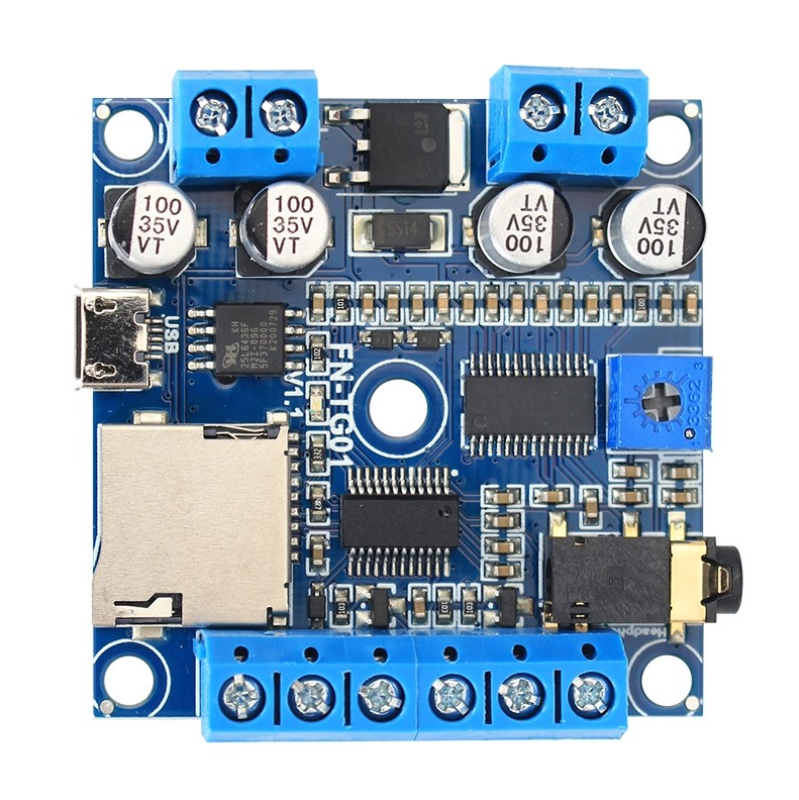

FN-TG01 MP3 Sound Board Front View

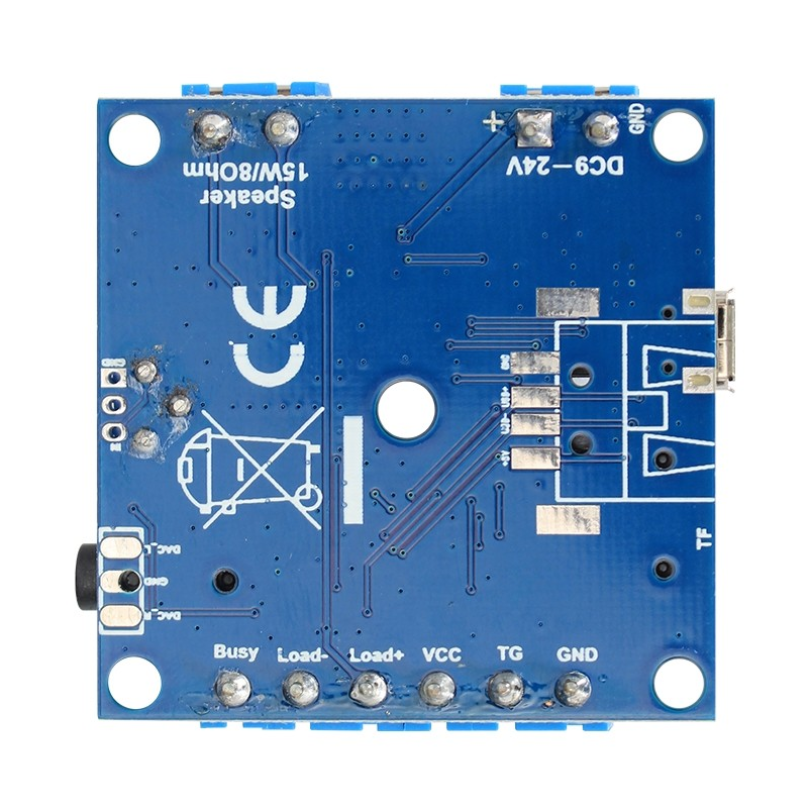

FN-TG01 MP3 Sound Board Back View
Features
  • Equipped with a high quality audio decoder chip.
  • Supports MP3 and WAV audio files.
  • Possible to be activated with a PIR motion sensor, a photoelectric sensor, a button switch or a relay.
  • Built-in a 8MB flash memory, which is able to store total of about 8 minutes long MP3 files of 128Kbps.
  • Equipped with a micro SD card holder, and supports max. 32GB micro SD card.
  • Solder pads for connection with external USB flash drive available on the back of the board.
  • Update audio files easily through the micro USB port connected to PC like using a USB flash drive.
  • Built-in a class D 15Watts amplifier IC that is possible to drive a 10Watts 8ohms or 15Watts 8ohms speaker.
  • Equipped with a 3.5mm audio output jack that can drive an earphone directly or connect to an external amplifier.
  • Adjustable sound volume through the blue potentiometer.
  • Optional to play a sound in order or in random after each activation when there are multiple files in the memory.
  • When a sound is playing, there is a load output simultaneously, which can directly drive a warning light, LED light or LED strip.
  • A busy output available as well. It outputs high level when playing and low level when standby.
  • Great sound quality and stable performance.
  • PCB size: 45mm x 45mm
Technical Parameters
Working Voltage
9-24V DC
Working Current
≤2000mA
Consumption Current at Playback
≤500mA (12V DC)
Standby Current
≤10mA
Flash Memory Size
8Mbytes
Audio Format
MP3 or WAV
Schematic of Wiring Connections
1. Connection with a PIR Motion Sensor

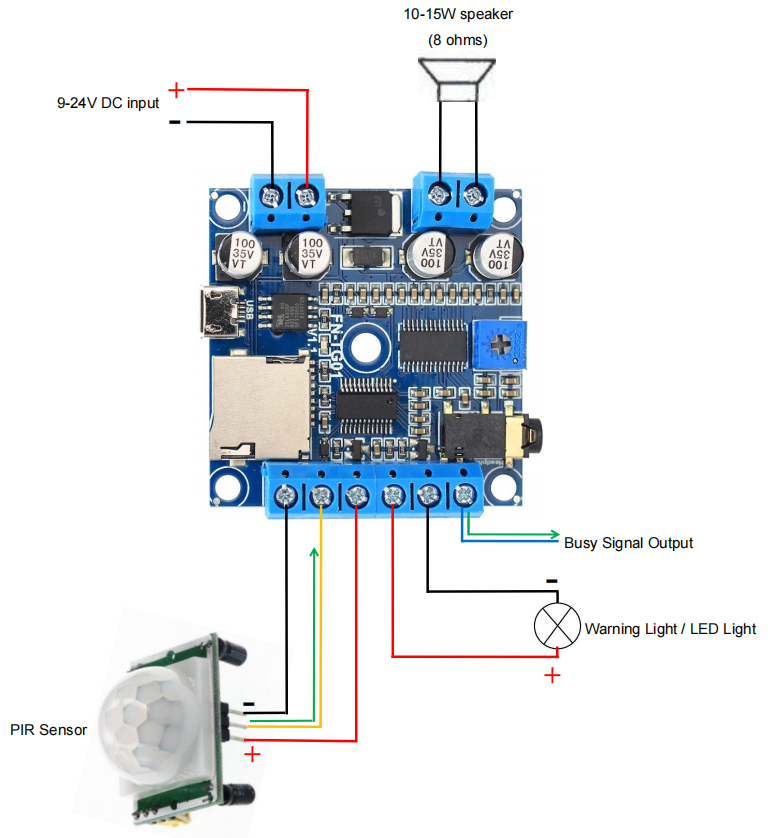

PIR Motion Sensor Connection Diagram
⚠️ Note:

The load output ports have the exactly same voltage as the power supply you use, so if you need to connect with a 12V light, the power supply you need to use must be 12V. If you don't need to connect with a light, just ignore this.

2. Connection with a Switch

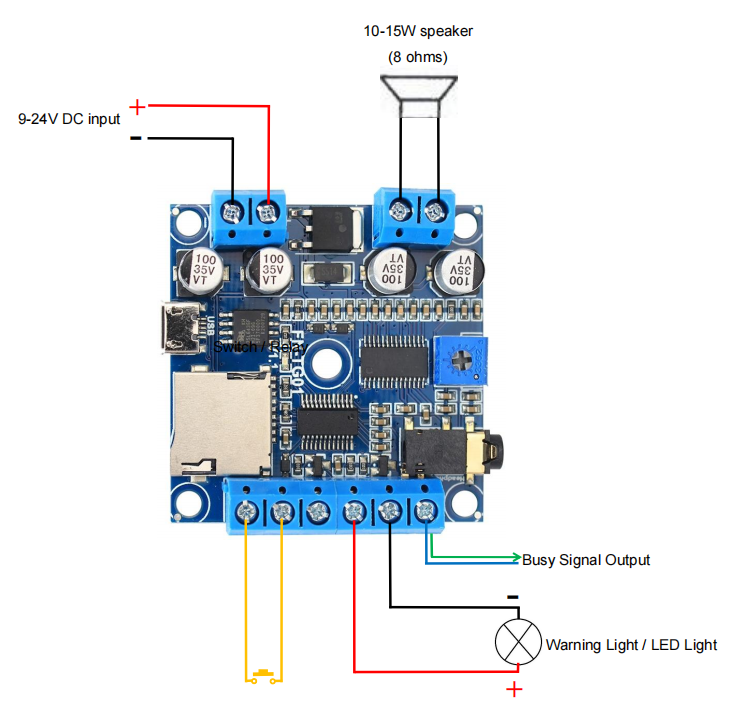

Switch Connection Diagram
⚠️ Note:

The load output ports have the exactly same voltage as the power supply you use, so if you need to connect with a 12V light, the power supply you need to use must be 12V. If you don't need to connect with a light, just ignore this.

Our Service
  • Ensure the products meet the quality standards.
  • Ensure the goods will be delivered on time.
  • Provide warm and friendly service and after-sale service.
  • We will reply to you within 24 hours.
  • OEM quality and original quality are acceptable.
  • About the warranty, if you have any problem about the goods after received it, you can tell us on time. We will make sure to give you a satisfactory solution.
Product Quality Certification
Frequently Asked Questions
What audio formats are supported by the FN-TG01 sound board?

The sound board supports high-quality MP3 and WAV audio files.

How can I update the audio files on the board?

You can easily update files by connecting the board to a PC via the micro USB port. It functions like a standard USB flash drive.

What is the built-in storage capacity, and can it be expanded?

The board features a built-in 8MB flash memory which stores about 8 minutes of 128Kbps MP3 files. It can be expanded up to 32GB via the onboard micro SD card slot.

What methods can be used to activate the audio playback?

The FN-TG01 can be activated using a PIR motion sensor, a photoelectric sensor, a button switch, or a relay.

Can the board drive external warning lights and speakers directly?

Yes. It features a class D 15W amplifier to drive a 10W or 15W (8 ohms) speaker. Additionally, it has a simultaneous load output that can directly power a warning light, LED light, or LED strip during audio playback.

What is the working voltage of this module?

The working voltage range is 9-24V DC. Please note that the load output voltage matches the input power supply voltage.
