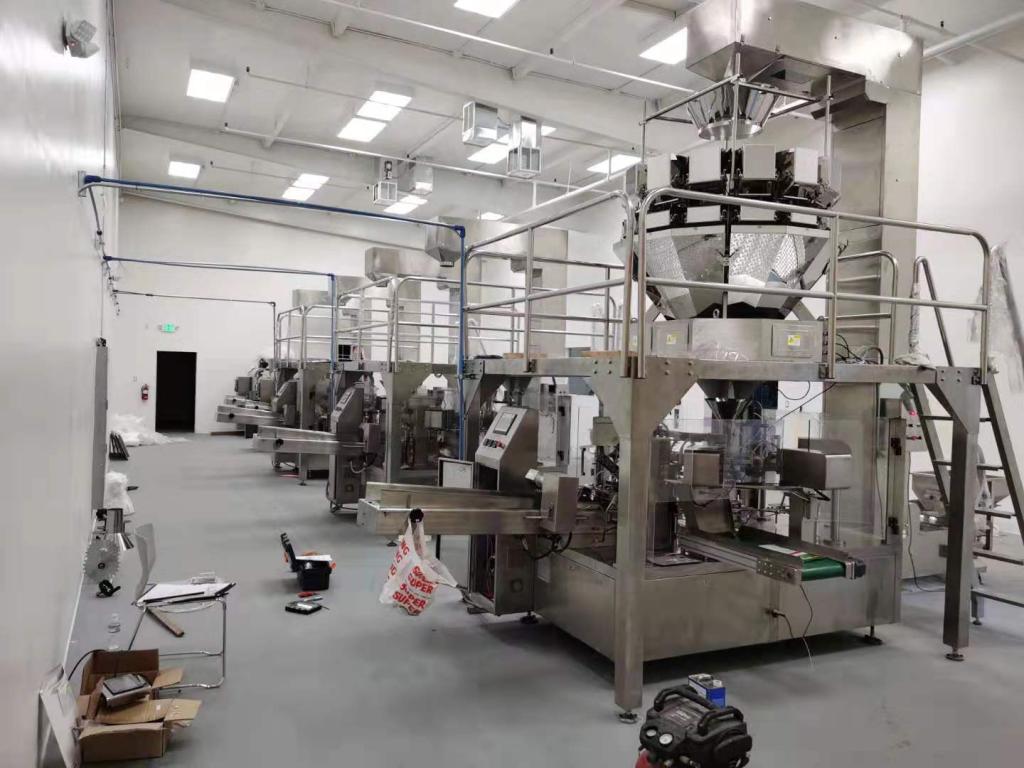

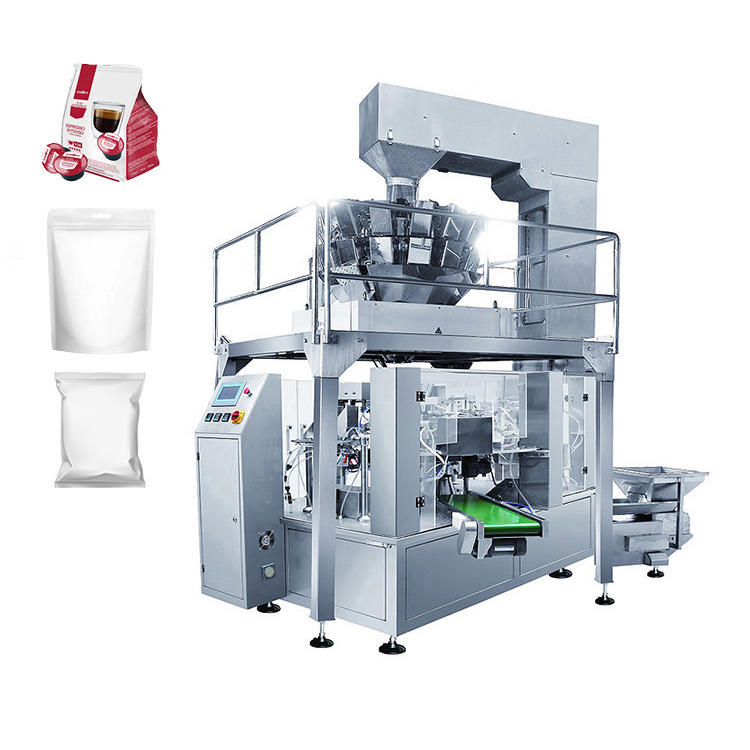

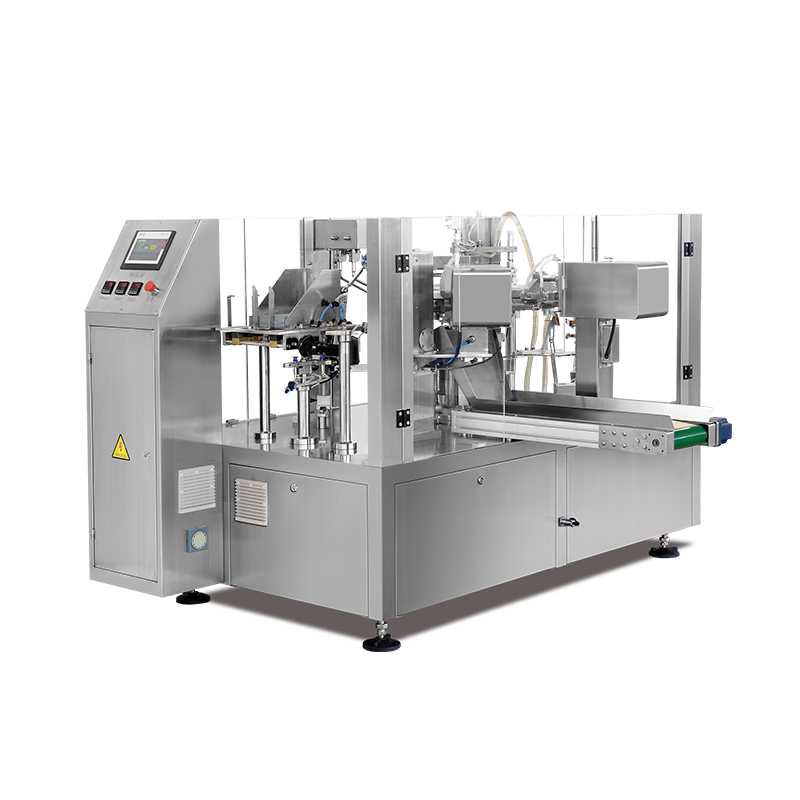

Premade Bag Automatic Packing Machine for Coffee Pods Capsules

Specification for Rotary Pouch Packing Machine

Model	MR8-200	MR8-260R	MR8-300R	MR8-400R
Bag Size	Width: 100-210mm Length: 100-350mm	Width: 120-260mm Length: 120-350mm	Width: 180-300mm Length: 180-400mm	Width: 280-400mm Length: 280-650mm
Filling Volume	5-2500g (Depending on products)	5-2500g (Depending on products)	5-2500g (Depending on products)	Max 5kgs
Capacity	30-60 bags/min 25-45 bags/min (Zipper bag)	30-60 bags/min 25-45 bags/min (Zipper bag)	30-40 bags/min	20-30 bags/min
Package Accuracy	Error ≤ ±1%
Total Power	4 KW (220V-450V, 3PH, 50HZ/60HZ)
Dimension (mm)	2300 × 1500 × 1600	2400 × 1500 × 1500	2460 × 1700 × 1500	2520 × 1750 × 1600
Weight	1700 KGS
Main Standard Accessories	1. Bag feeding system \| 2. PLC control system \| 3. Bag opening device \| 4. Filling system \| 5. Cleaning system \| 6. Hot sealing control system \| 7. Output system
Main Optional Equipment	Material metering and filling machine, working platform, check weigher, material elevator, finished product conveyor, metal detector.

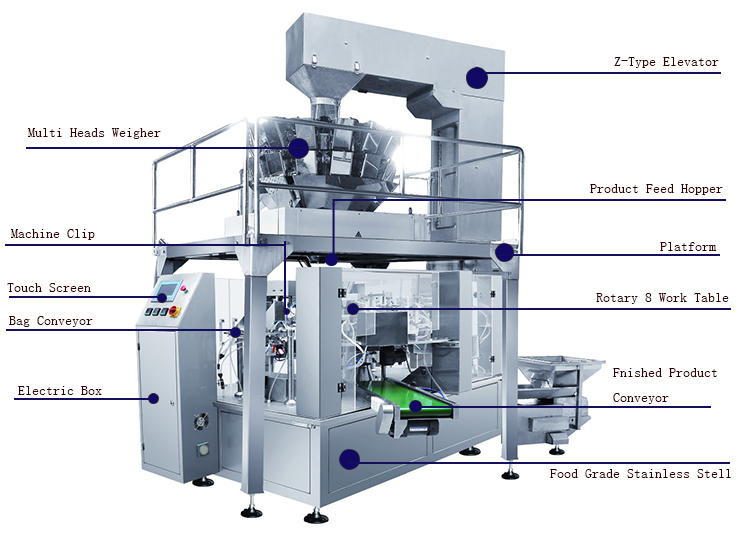

Rotary Packaging Machine Structural Details

Features and Characteristics

Easy to operate: PLC controller, HMI system, and intuitive fault indication directly displayed on the touch screen.
Easy to adjust: All working processes are integrated into a single station, making adjustment much simpler.
Frequency control: Operating speed can be adjusted within range by frequency conversion.
High Automation: Unmanned operation during the weighing and packing processes; the machine alerts and alarms automatically in case of failure.
Pouch size change: Adjust 8 sets of gripper configurations simultaneously using a centralized hand wheel.
Safety verification: Alarms are triggered for no pouch or incorrect pouch opening, preventing empty filling or sealing.
Pressure safety protection: Machine automatically alarms and shuts down in case of inadequate air pressure.
Safety guards: Equipped with safety switches; machine alarms and stops immediately if security guards are opened.
Hygienic construction: All product contact parts are made of high-quality SUS304 stainless steel.
Lubrication-free: Imported engineering plastic bearings reduce maintenance without need for oil, preventing contamination.
Oil-free vacuum pump: Clean operation prevents pollution of the production environment.

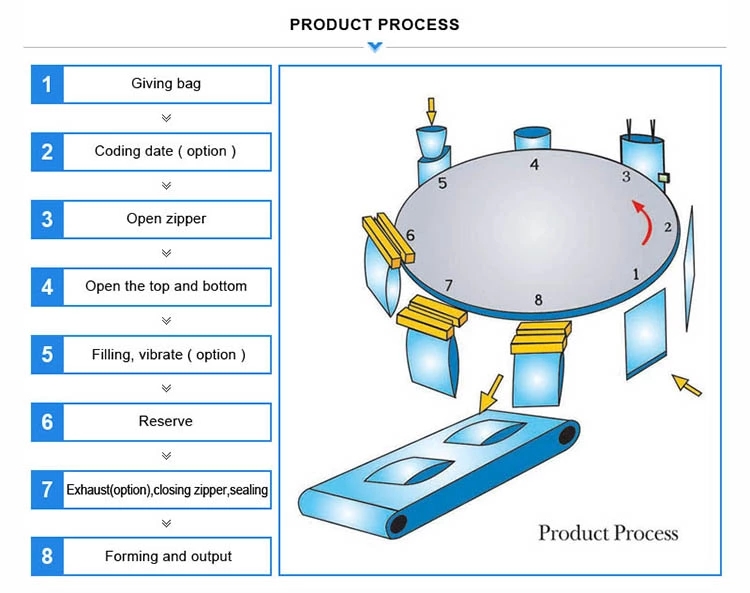

Work Process:

Bag Giving → Date Coding → Bag Opening → Filling and Vibrating 1 → Filling and Vibrating 2 → Heat Sealing 1 → Heat Sealing 2 → Forming and Output

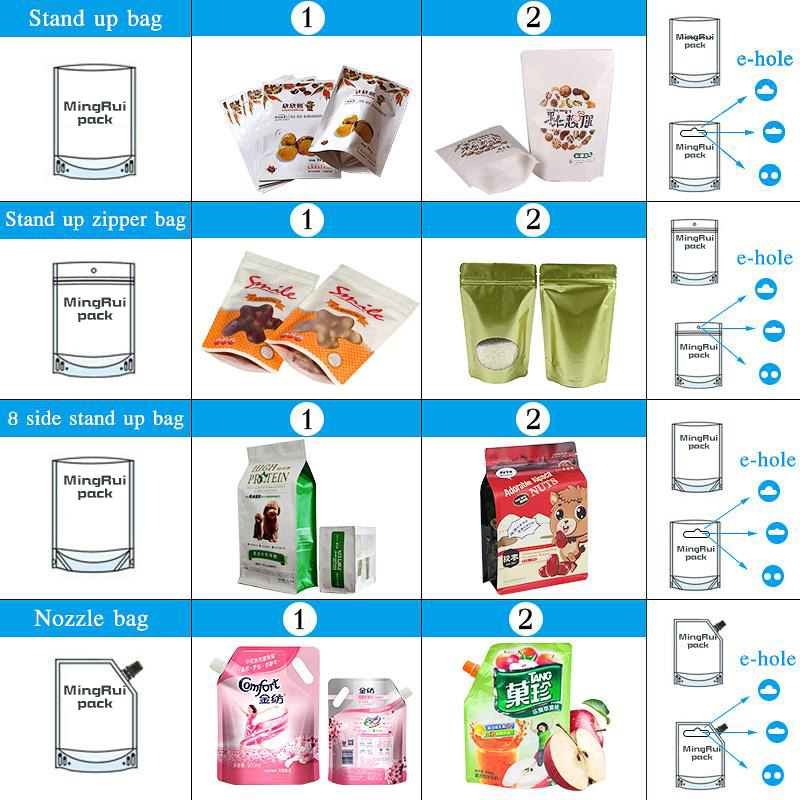

Suitable Bag Type: All types of heat-sealable preformed side-seal bags, block-bottom bags, zip-lock bags, stand-up pouches with or without spout, etc. Please send us your bag requirements, and we will find the ideal matching configuration.

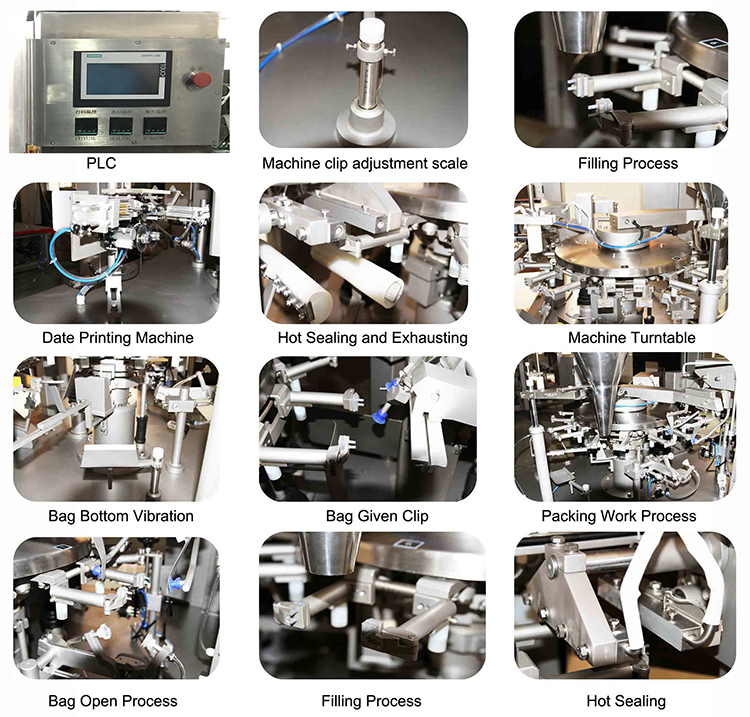

Machine Details & Accessory Options

Detailed components of rotary packing machinery

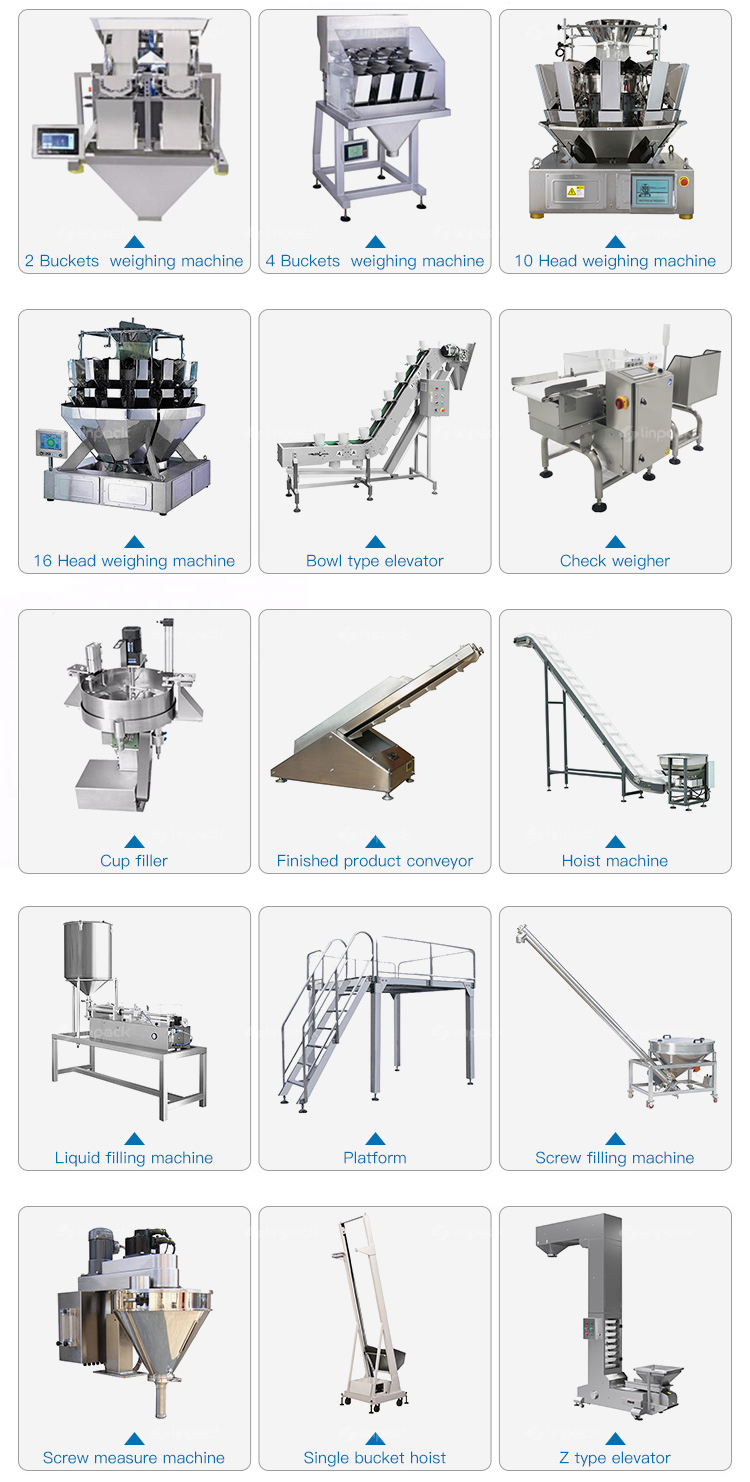

Related Equipment Configurations:

Weighing System

Designed for measuring product weight accurately. We will configure the ideal weigher structure according to your product specifications.

Elevator System

For feeding products automatically from the floor up to the weighing or packaging unit, customized based on your product features.

Auxiliary Elevator and Weighing Assembly

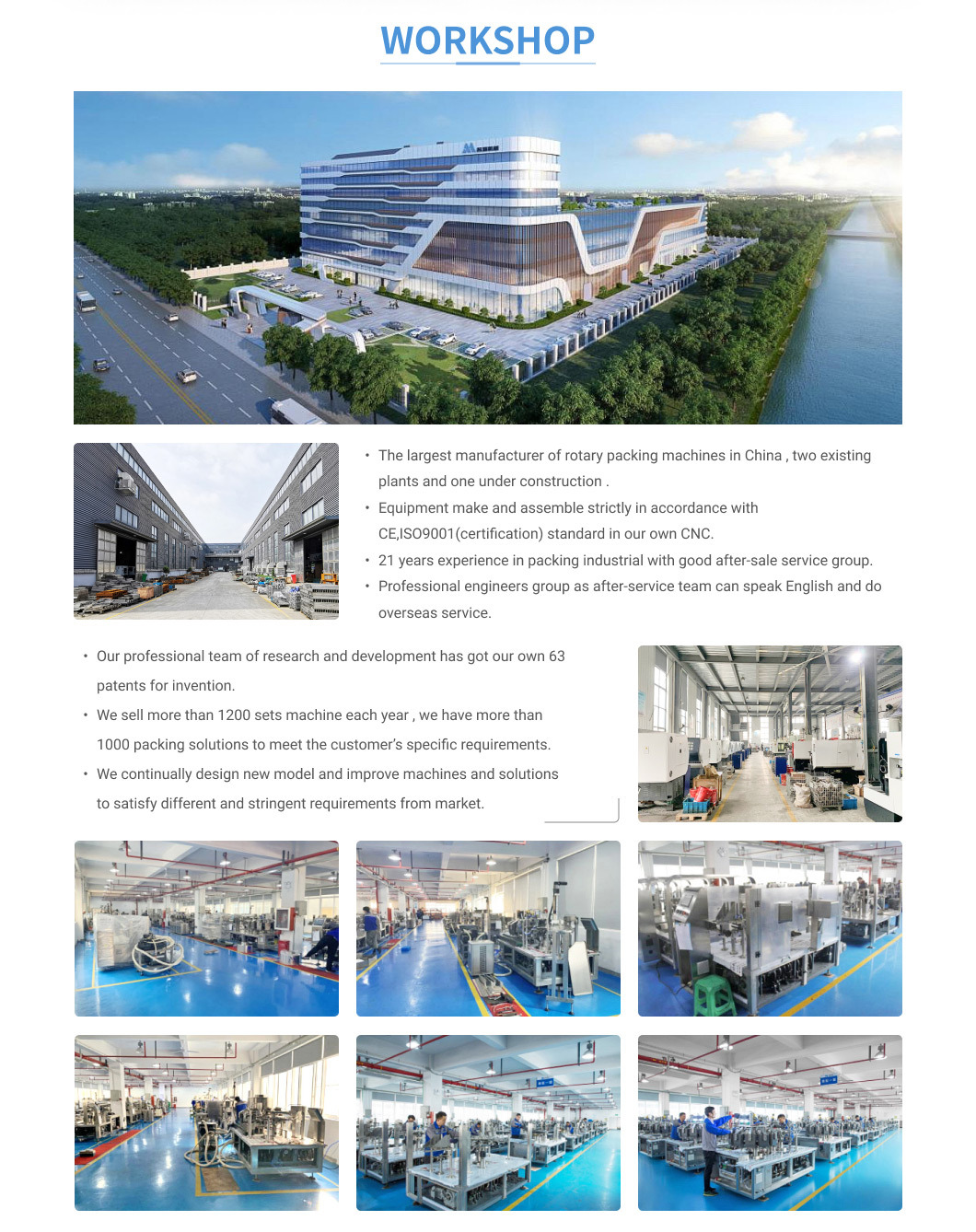

Factory Overview & Production Capacity

Our Services & Why Choose Us?

12 Months Warranty

Free replacement parts provided for any non-human related malfunctions occurring within one year.

Parts Availability

We operate a full-scale factory with hundreds of staff to ensure your spare parts are always available post-purchase.

Engineer Support

Professional engineers are available for global deployment and onsite maintenance over the machinery's lifecycle.

Online Support

Immediate virtual technical support with our engineering experts for responsive troubleshooting.

Feedback Surveys

Engineers gather operational satisfaction ratings to guarantee sustained equipment quality standards.

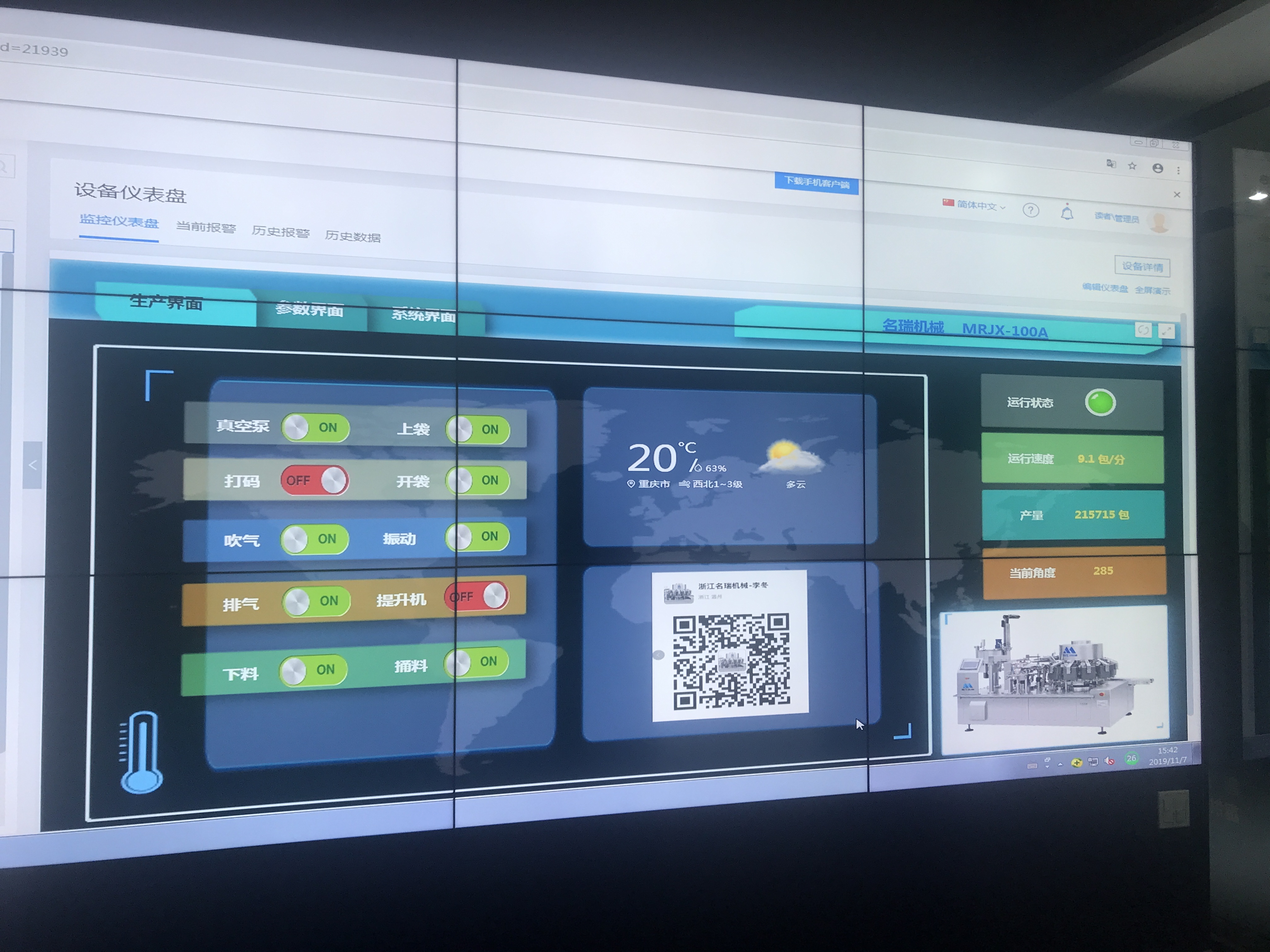

Remote Technical Diagnostics

The machinery can be remotely controlled through standard Ethernet connection. In case of programming issues, our team can safely link and resolve faults from our facility instantly, optimizing service dispatch times.

Remote connection diagnostics representation

(Don't Worry! We have several Models. We can recommend you according to your requirement. Just Tell Us: Capacity, Filling machine and Capsule Size.)

FAQ

How can I arrange a visit to your production facility?

Our production factory is open to global buyers. We welcome you to arrange a tour with our staff if you plan to travel.

How can I verify if this machine is suitable for my specific product?

You can send us samples of your products and bags, and we will perform testing trials directly on the machine. We will document this via detailed videos and photographs for your evaluation.

What secure options do you offer for first-time business partners?

We possess fully valid business licenses and certifications. If preferred, we can use secure trade assurance methods to ensure financial security throughout the transaction stages.

What warranty and after-sales services are provided with this machine?

We offer a 12-month warranty from the date of arrival at the buyer's site. Our experienced technicians offer lifetime online assistance and field engineering services.

What kinds of packaging bags can this rotary machine process?

It is compatible with almost all preformed heat-sealable bags including side seal bags, flat bottom bags, zipper configurations, and spouted stand-up pouches.

How do I get a recommendation for the proper model?

Please submit your desired bag size, product properties, and target throughput capacity to our technical team, and we will formulate a system recommendation for you.
