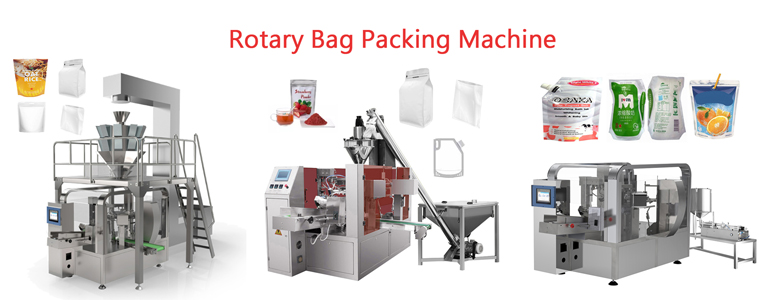

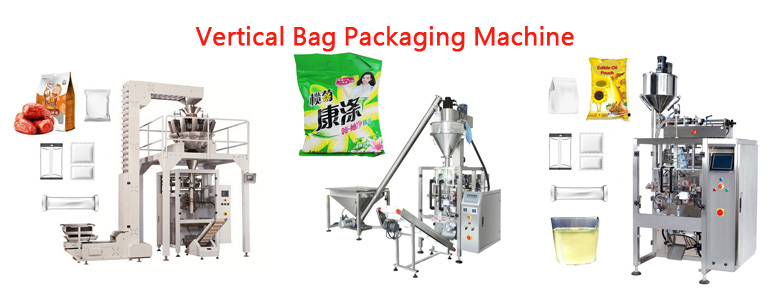

The Filling System is Just for Your Reference. We Will Offer You the Best Solution According to Your Product Mobility, Viscosity, Density, Volume, Dimensions, Etc.
Servo Screw Auger Filler Is Specialized for Power Filling Such as Nutrients Power, Seasoning Powder, Flour, Medicinal Powder, Etc.
Piston Pump Filler Is Specialized for Liquid Filling Such as Water, Juice, Laundry Detergent, Ketchup, Etc.

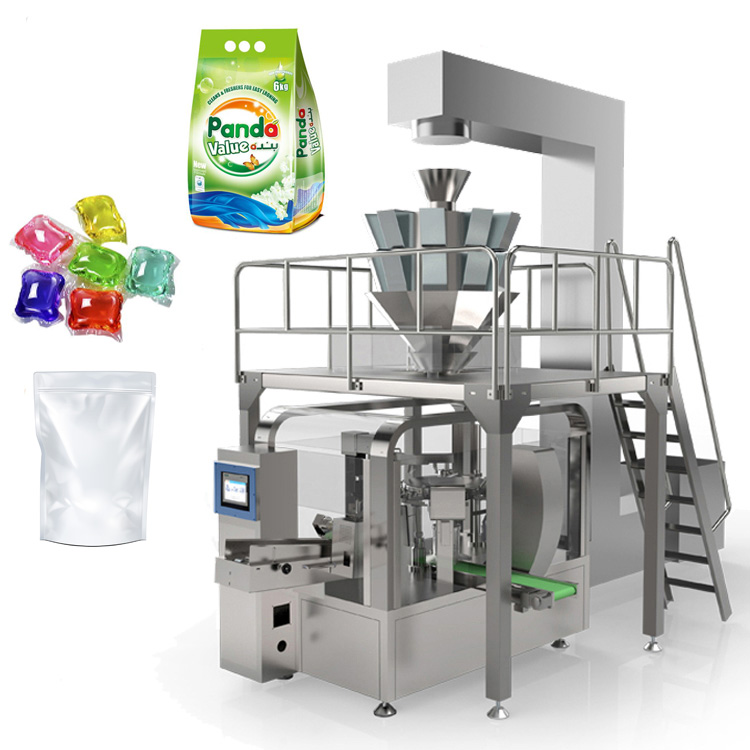

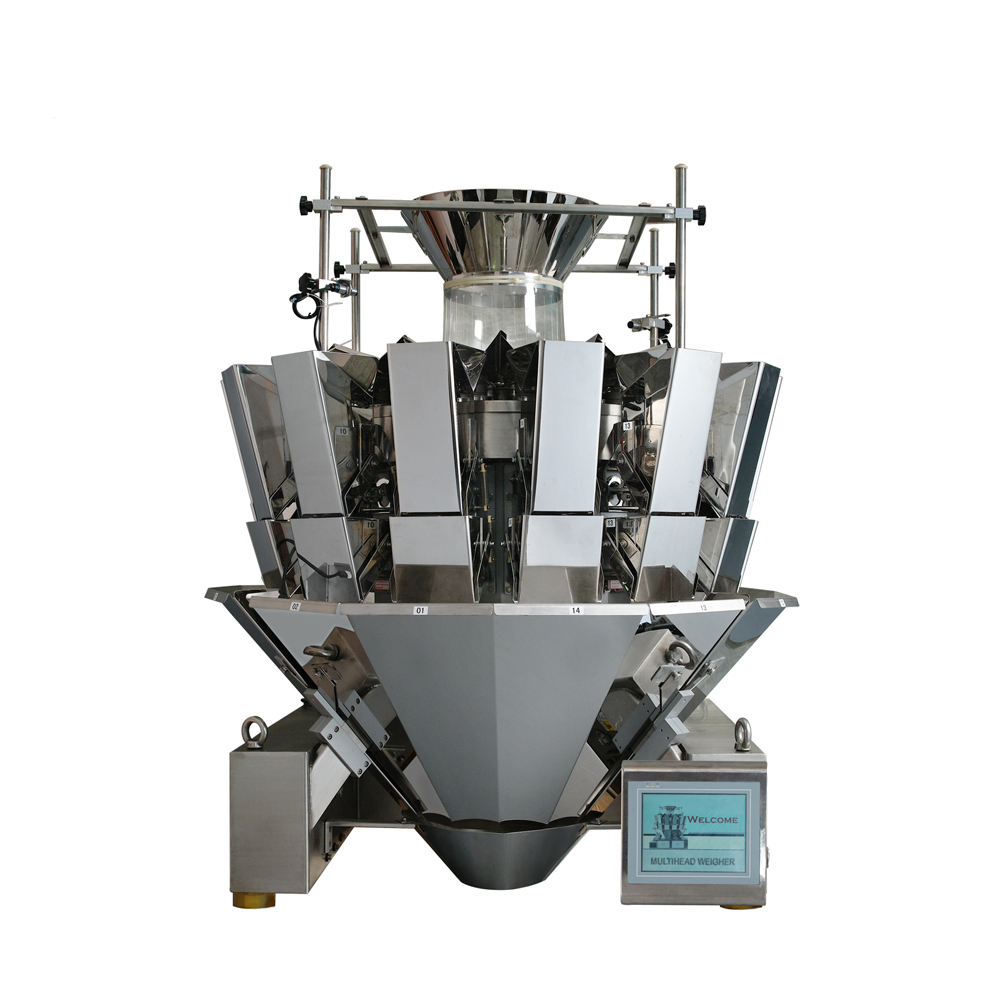

Combination Multi-head Weigher Is Specialized for Solid Filling Such as Candy, Nuts, Pasta, Dried Fruit, Vegetable, Etc.
Volumetric Cup Filler Is Specialized for Granule Filling Such as Chemical, Beans, Salt, Seasoning, Etc.
| Parameter | Specification Details |
|---|---|

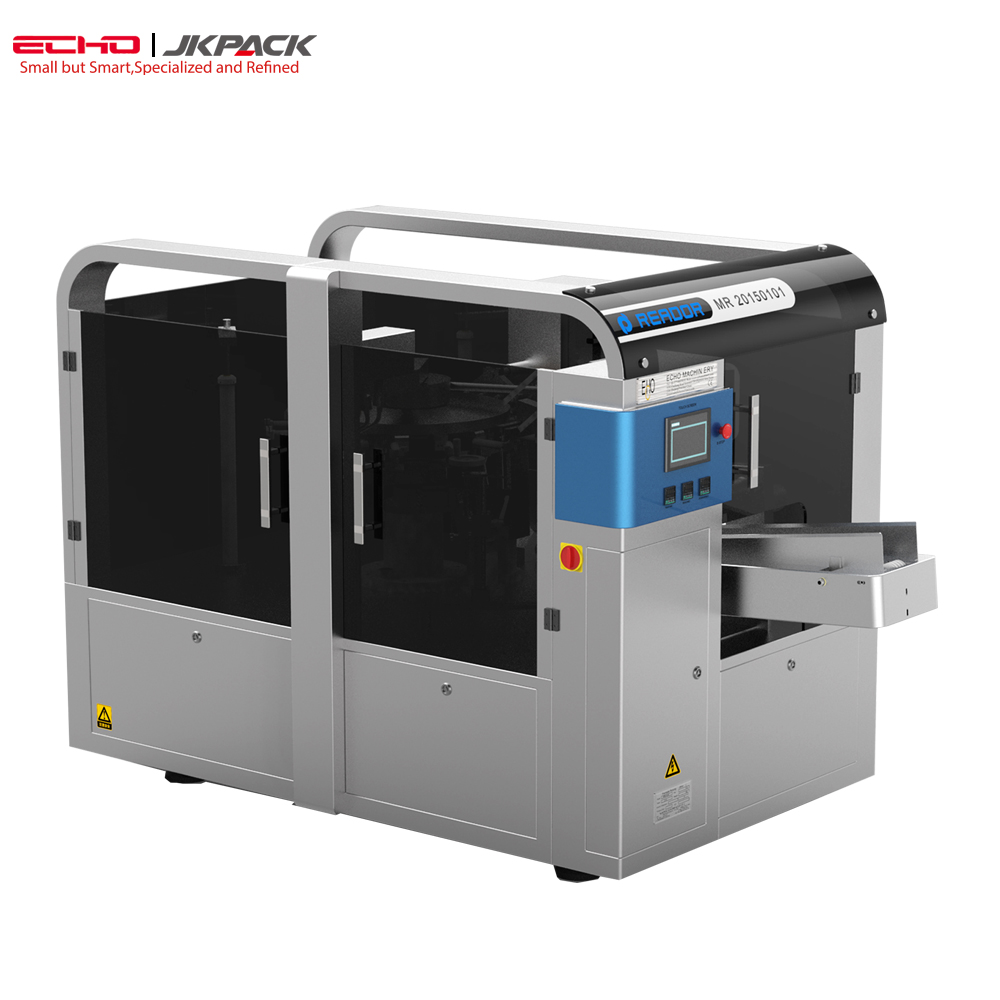

| Model | MR8-200/300RW |
| Bag Size | Width: 80-210mm / 200-300mm, Length: 100-300mm / 100-350mm |
| Filling Volume | 5-2500g (Depending on type of products) |
| Capacity | 30-60 bags/min (The speed depends on type of products and packaging material used) 25-45 bags/min (For zipper bag) |
| Package Accuracy | Error ≤ ±1% |
| Total Power | 2.5KW (220V/380V, 3PH, 50HZ) |
| Dimension | 1710 * 1505 * 1640 mm (L * W * H) |
| Weight | 1480 KGS |
| Compressed Air Requirement | ≥ 0.8m³/min (supply by user) |
We can customize the suitable one for you according to your requirements. Just tell us the weight or bag size required.
High-quality components from leading international brands ensure excellent performance:
* Components can be replaced/customized as needed based on customer requirements.
Safety Measures:
Product Processing Stages:
The machine is compatible with multiple filling systems depending on your material characteristics. These include Servo Screw Auger Fillers for powders, Piston Pump Fillers for liquids, Combination Multi-head Weighers for solids, and Volumetric Cup Fillers for granules.
Yes. While standard configurations feature high-quality international brands (like SIEMENS, TOSHIBA, FESTO, OMRON, etc.), parts and component brands can be replaced and customized to match specific customer preferences or requirements.
The machine features smart safety interlocks to prevent product wastage and machine damage: (1) no bag feeding results in no filling and no sealing; (2) no bag opening or an opening error results in no filling and no sealing; (3) no filling results in no sealing.
The machine supports a wide range of sizes. Bag widths can range from 80mm to 300mm, and bag lengths from 100mm to 350mm, depending on the chosen model configurations (MR8-200 or MR8-300RW).

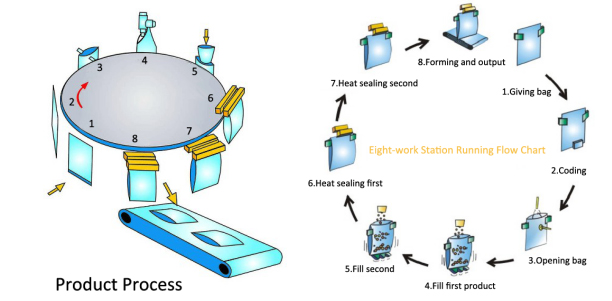

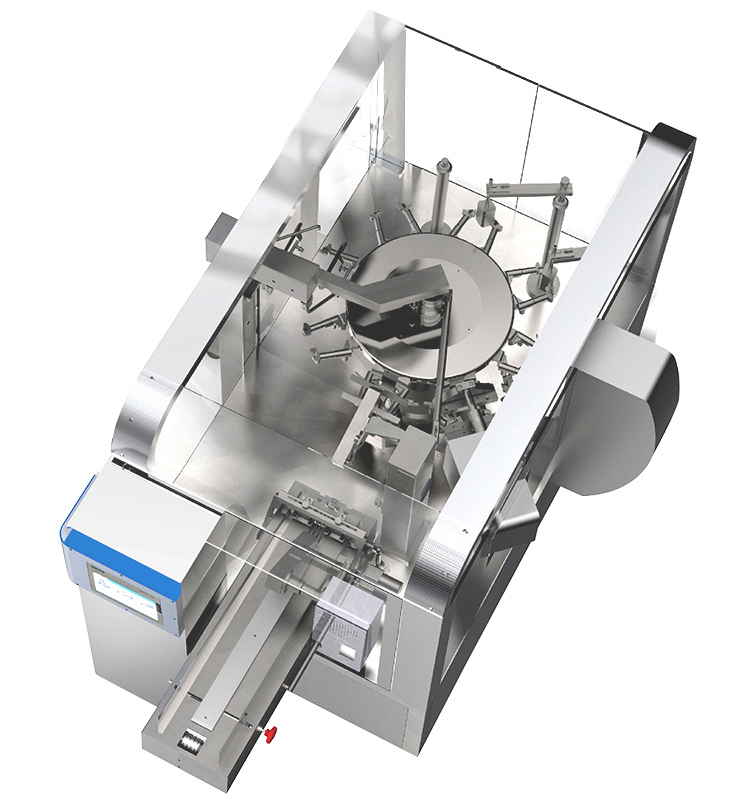

The standard operation consists of an 8-station process: Bag Feeding (1), Date Printing & Open zipper (2), Open bag (3), Filling Materials (4), customizable processes like Vibration, Air Removal, Nitrogen Filling, Close Zipper, or Hole Punching (5, 6, 7), and Heat Sealing and Product Output (8).
The packing machine operates with a high accuracy limit where the packaging error is ≤±1%. The operational capacity is 30-60 bags per minute for standard configurations and 25-45 bags per minute for zipper bags, varying based on the product characteristics and packaging materials used.
